Description

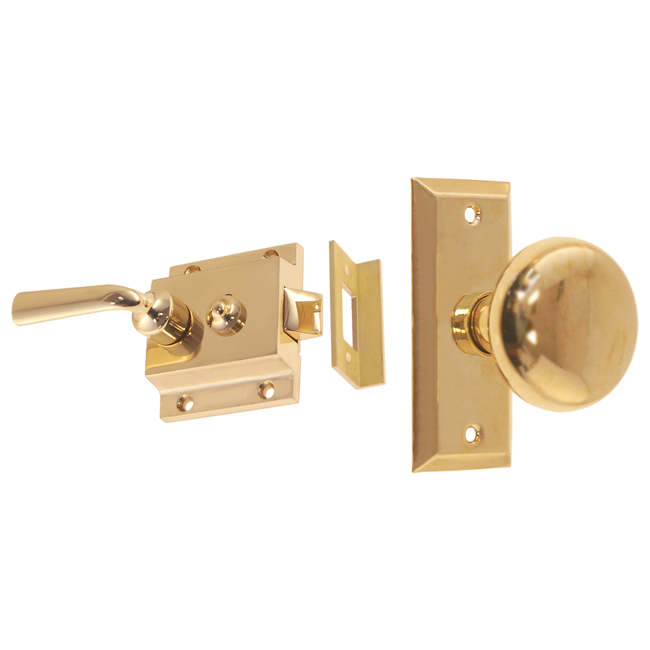

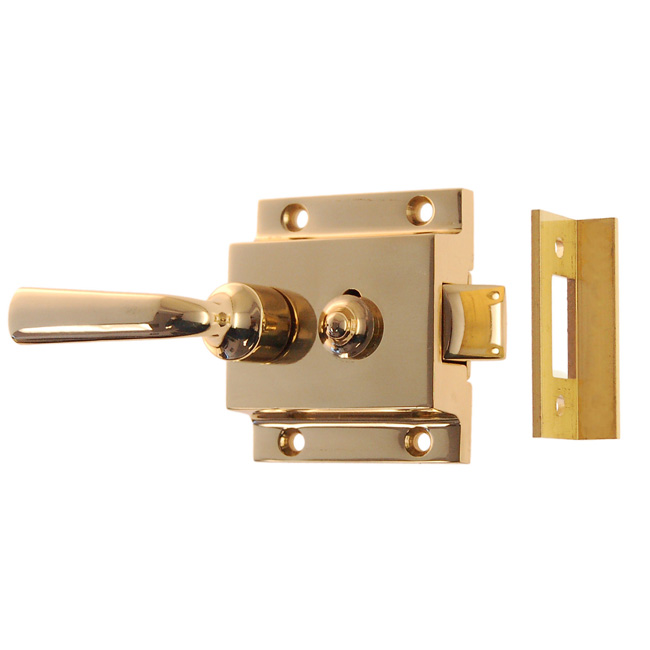

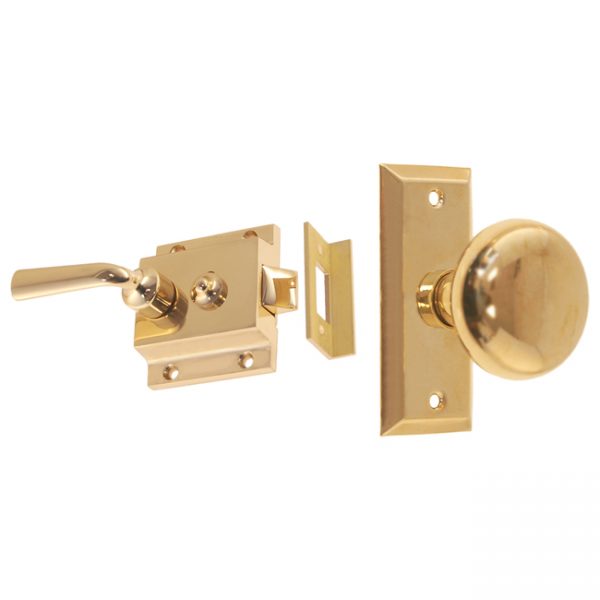

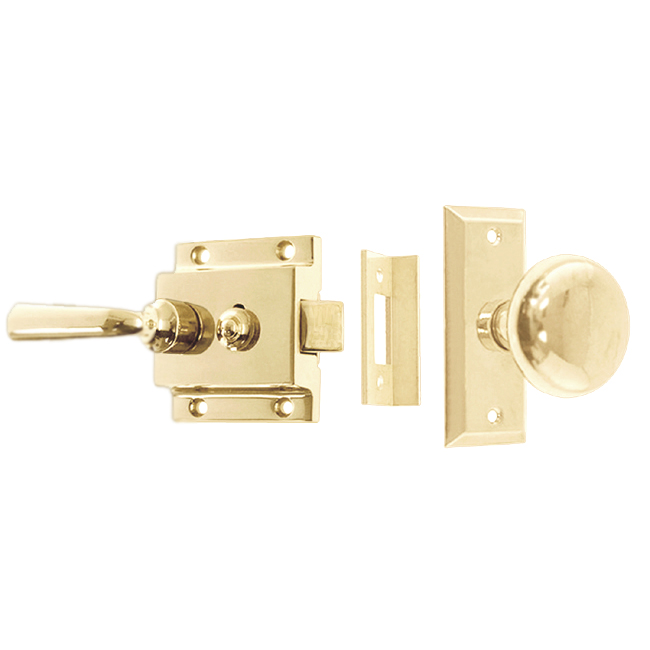

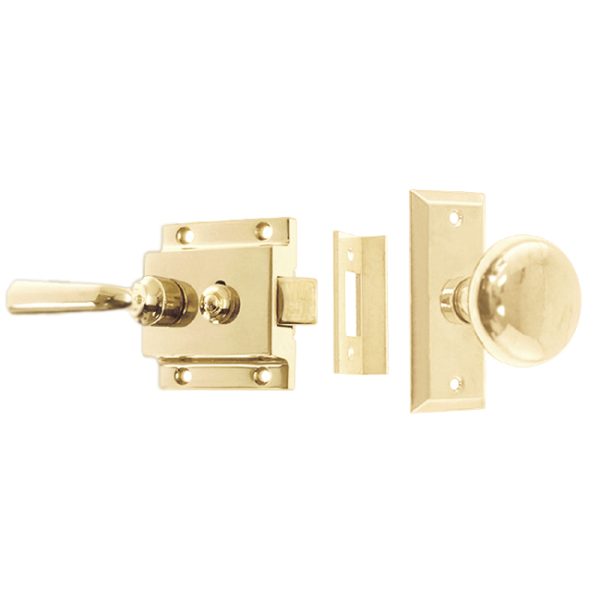

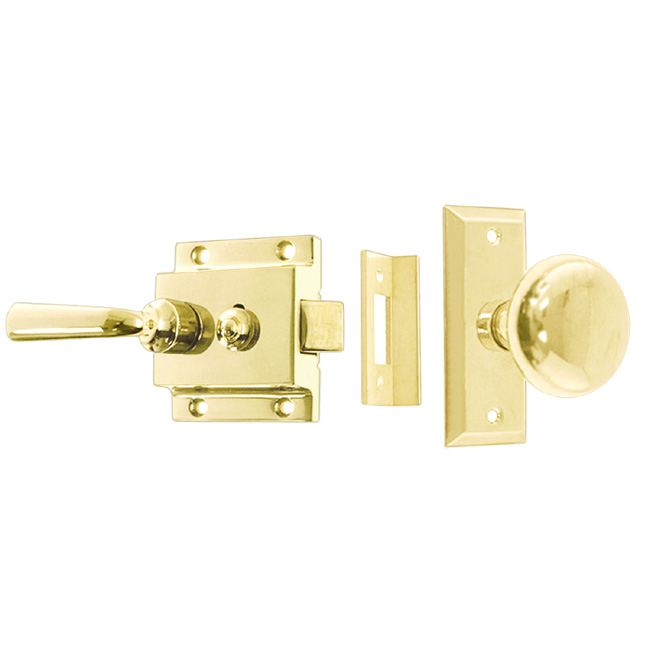

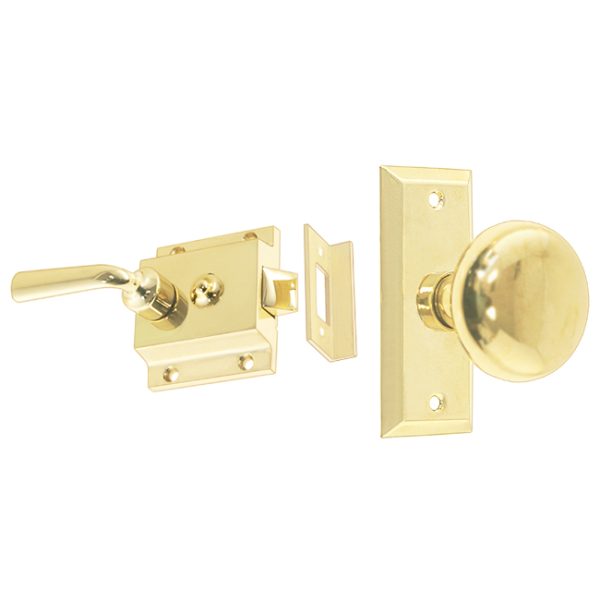

Complete screen door latch set with lever on the inside and knob on the outside. Button can lock latch in either position. Comes with reverse bevel and an angle strike. Bevel is reversible. Works on both right and left-handed doors. For door thickness from 7/8″ to 1-3/4″. Includes hex key for set screws.
Available in 6 finishes: AB, PB, PL, PN, BN, OB.
Case: 2″ x 2-1/4″ x 5/8″
Lever: 1-3/4″ long, 2″ projection
Knob: 1-3/4″ dia., 2″ projection
Door plate: 1-3/8″ x 3″
Angle strike: 1-3/4″ long, 7/16″ wide, 13/16″ high
Steel spindle: 3-1/2 long, 9/32″ (7mm) wide, 3/8″-20 thread
